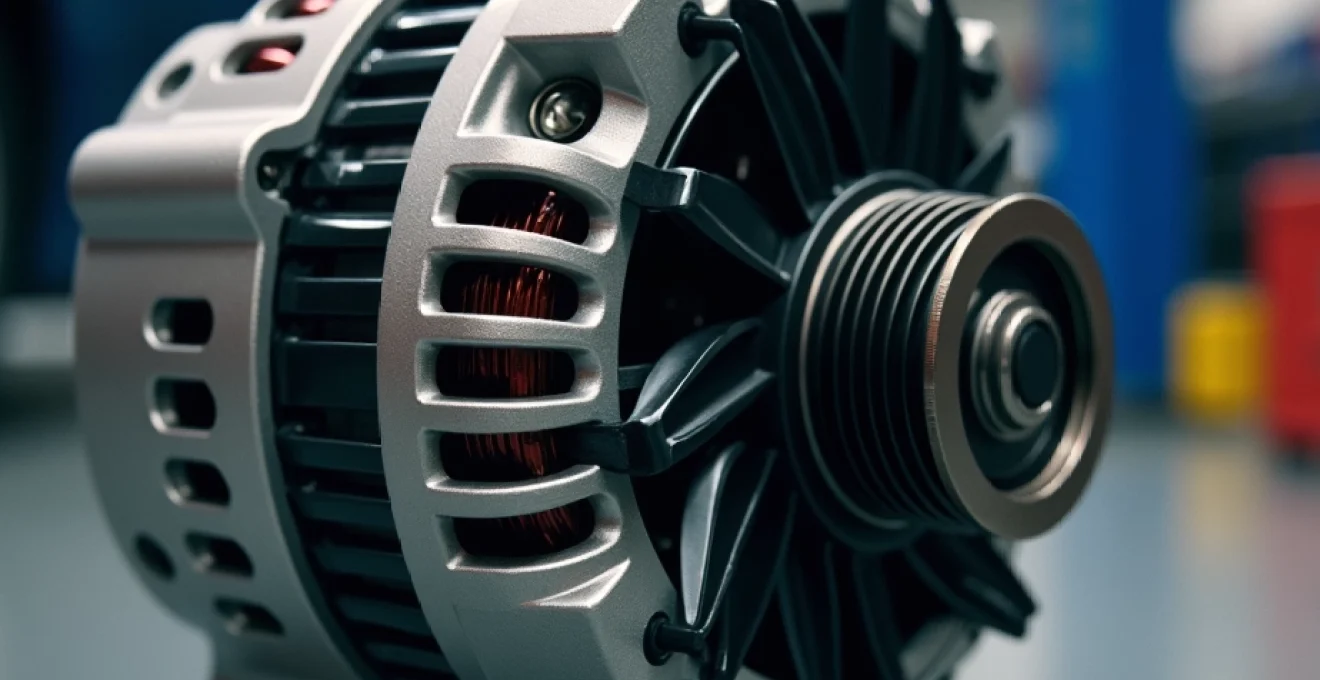

The alternator plays a crucial role in your vehicle’s electrical system, acting as the powerhouse that keeps everything running smoothly. This often-overlooked component is responsible for charging the battery and powering various electrical systems while the engine is running. Understanding how the alternator functions and recognising the signs of its failure can help you avoid unexpected breakdowns and costly repairs. Let’s delve into the intricacies of this vital automotive component and explore how it impacts your car’s performance.
Alternator functionality and electrical system integration
The alternator is a key player in your car’s electrical ecosystem, working in tandem with the battery to ensure a steady supply of power. While the battery provides the initial burst of energy to start the engine, the alternator takes over once the car is running, generating electricity to power all electrical components and recharge the battery.
At its core, the alternator converts mechanical energy from the engine into electrical energy. This process begins with the serpentine belt, which connects the alternator to the engine’s crankshaft. As the engine runs, it spins the alternator’s rotor, initiating the power generation process.
The alternator’s output is carefully regulated to maintain a consistent voltage, typically around 14.2 volts in most 12-volt vehicle systems. This regulation is crucial to protect sensitive electronic components from damage due to voltage fluctuations. Without a properly functioning alternator, your car’s electrical systems would quickly drain the battery, leading to a host of issues and eventually leaving you stranded.
Components of modern automotive alternators
To truly appreciate the alternator’s role, it’s essential to understand its key components. Modern alternators are marvels of engineering, designed to be compact yet powerful enough to meet the increasing electrical demands of contemporary vehicles. Let’s break down the main parts that work together to keep your car’s electrical system humming.
Rotor assembly and electromagnetic field generation
The rotor is the heart of the alternator, consisting of a spinning shaft with wound copper wire forming an electromagnet. When electric current flows through this winding, it creates a magnetic field. As the rotor spins within the stator, this magnetic field induces an electrical current in the stator windings.
The rotor’s design is critical for efficient power generation. High-quality alternators use precision-engineered rotors to maximise output while minimising wear and tear. The strength of the electromagnetic field directly impacts the alternator’s power generation capacity, making the rotor a key component in determining overall performance.
Stator windings and AC power production
Surrounding the rotor is the stator, a stationary component featuring copper wire windings. As the rotor’s magnetic field cuts across these windings, it induces an alternating current (AC). The configuration of these windings significantly influences the alternator’s efficiency and output capacity.
Modern stators are designed to produce three-phase AC power, which is more efficient than single-phase systems. This design allows for smoother power output and better utilisation of the alternator’s capacity, ensuring your vehicle’s electrical needs are met even under high demand.
Rectifier diodes for DC conversion
While the stator produces AC power, your car’s electrical system requires direct current (DC). This is where the rectifier diodes come into play. These semiconductor devices convert the AC output into DC, making it usable for your vehicle’s battery and electrical components.
The rectifier assembly typically consists of six diodes arranged in a specific configuration. This arrangement ensures efficient conversion with minimal power loss. High-quality diodes are crucial for maintaining the alternator’s overall efficiency and longevity.
Voltage regulator and output control
The voltage regulator is the brain of the alternator, controlling its output to maintain a steady voltage regardless of engine speed or electrical load. This component constantly monitors the electrical system’s voltage and adjusts the alternator’s field current accordingly.
Modern voltage regulators are sophisticated electronic devices, often integrated into the vehicle’s engine control module (ECM) for more precise control. They ensure that the alternator produces just enough power to meet the vehicle’s needs without overcharging the battery or damaging sensitive electronics.
Alternator performance metrics and specifications
Understanding alternator performance goes beyond knowing its components. Key metrics and specifications help determine an alternator’s suitability for different vehicles and applications. Let’s explore these important factors that influence alternator selection and performance evaluation.
Amperage output ratings across vehicle types
Alternator output is primarily measured in amperes (amps), indicating the maximum current it can provide. The amperage rating varies significantly across different vehicle types and models. For instance:
- Compact cars typically require alternators rated between 70-120 amps
- Full-size sedans and SUVs often need 120-160 amp alternators
- Heavy-duty vehicles or those with high-power audio systems may require 200+ amp alternators
Selecting an alternator with the appropriate amperage rating is crucial for ensuring your vehicle’s electrical system operates efficiently without overburdening the alternator.
Voltage regulation tolerances in 12V and 24V systems
Voltage regulation is critical for protecting your vehicle’s electrical components. Most passenger vehicles use 12V systems, while some commercial and military vehicles employ 24V systems. The voltage regulator must maintain output within tight tolerances:
- 12V systems typically operate between 13.5-14.5 volts
- 24V systems generally maintain 27-29 volts
Precise voltage regulation ensures optimal battery charging and prevents damage to sensitive electronics. High-quality alternators maintain these tolerances even under varying loads and engine speeds.
Efficiency curves and power generation capacity
An alternator’s efficiency isn’t constant across all operating conditions. Efficiency curves illustrate how an alternator’s output and efficiency change with engine speed and electrical load. Understanding these curves is crucial for matching an alternator to a vehicle’s specific needs.
Modern alternators aim for peak efficiency around 50-70% of their maximum rated output. This design ensures optimal performance under typical driving conditions while providing headroom for higher demands. Some advanced alternators incorporate technologies like variable voltage control to further enhance efficiency across a broader range of operating conditions.
Common alternator failure modes and diagnostic indicators
Recognising the signs of alternator failure can help you address issues before they lead to a breakdown. Let’s explore common failure modes and the telltale signs that indicate your alternator might be on its last legs.
Bearing wear and rotor misalignment symptoms
Bearing wear is one of the most common mechanical issues in alternators. As bearings degrade, they can cause:
- Unusual noises, such as grinding or whining, especially when the engine is under load
- Vibrations that may be felt through the steering wheel or pedals
- Reduced alternator output due to increased friction and misalignment
Early detection of bearing wear can prevent more severe damage to the alternator and other belt-driven components. If you notice these symptoms, it’s crucial to have your alternator inspected promptly.
Diode rectifier malfunction and ripple voltage
Diode failure in the rectifier assembly can lead to inadequate charging and electrical system instability. Signs of diode problems include:
- Battery warning light flickering or staying on
- Erratic behaviour of electrical components, such as flickering lights
- Unusual battery drain or difficulty starting the vehicle
Technicians can diagnose diode issues using specialised equipment to measure ripple voltage , which increases when diodes fail. Prompt attention to these symptoms can prevent complete alternator failure and potential damage to other electrical components.
Voltage regulator failure and charging system instability
A faulty voltage regulator can lead to either undercharging or overcharging, both of which can cause significant problems. Symptoms of voltage regulator issues include:
- Dimming or overly bright lights
- Frequent battery failures due to overcharging
- Electrical system malfunctions caused by voltage fluctuations
Modern vehicles often provide detailed diagnostic information through their onboard computer systems, making it easier for technicians to pinpoint voltage regulation problems. Regular electrical system checks can help catch these issues early.
Stator winding insulation breakdown detection
Stator winding failure can occur due to heat stress, contamination, or physical damage. Signs of stator problems include:
- Reduced alternator output, leading to gradual battery drain
- Burning smell from the alternator area
- Complete loss of charging function in severe cases
Detecting stator winding issues early can be challenging, as symptoms may develop gradually. Regular alternator performance checks and visual inspections can help identify potential stator problems before they lead to complete failure.
Advanced alternator technologies and future developments
The automotive industry is continually evolving, and alternator technology is no exception. Recent advancements and future developments promise to enhance efficiency, reliability, and performance. Let’s explore some of the cutting-edge technologies shaping the future of automotive charging systems.
One significant trend is the move towards smart charging systems . These advanced alternators can communicate with the vehicle’s engine management system to optimise charging based on real-time electrical demands and driving conditions. This intelligent power management can lead to improved fuel efficiency and reduced emissions.
Another exciting development is the integration of regenerative braking systems with alternators. This technology, already common in hybrid vehicles, is finding its way into conventional cars. By capturing energy during deceleration and braking, these systems can reduce the load on the alternator, further improving overall vehicle efficiency.
Looking ahead, we can expect to see more widespread adoption of belt-driven starter generators (BSG). These units combine the functions of an alternator and starter motor, allowing for smoother start-stop operation and mild hybrid capabilities. BSGs represent a significant step towards electrification in mainstream vehicles.
As vehicles become increasingly electrified, the role of traditional alternators may evolve. In fully electric vehicles, DC-DC converters take on the role of powering low-voltage systems, while in plug-in hybrids, sophisticated power management systems balance power generation between the internal combustion engine and electric drive components.
The future of alternator technology is closely tied to broader trends in vehicle electrification and energy efficiency. As these technologies continue to advance, we can expect to see more integrated, efficient, and intelligent charging systems that contribute to overall vehicle performance and sustainability.
